When the Visible Image Depends on Invisible Mathematics

Standards, History, Algorithms, and the Engineering Logic Behind GEN-B

Television looks visual, but it was never only visual. From its earliest experiments, television was a negotiation between optics, electricity, timing, bandwidth, human perception, and mathematics. A viewer sees a picture. An engineer sees scanning, synchronization, modulation, levels, colorimetry, signal paths, and tolerances.

That difference matters. In professional communications, an image is not considered correct simply because it looks pleasant. It is correct when it follows a standard, can be measured, can be reproduced, and can be understood by every compliant device in the chain.

This is the world GEN-B was designed for.

A Brief History: From Mechanical Scanning to Electronic Television

Early television began as an electromechanical idea. Systems based on rotating scanning discs, often associated with the Nipkow disc principle and later public demonstrations by pioneers such as John Logie Baird, converted light into sequential electrical information. The image was not captured all at once. It was scanned point by point, line by line, through physical motion.

That was the first essential lesson of television: an image could become a time-based signal.

Electronic television removed the rotating mechanics and replaced them with controlled electron beams, camera tubes, cathode-ray tubes, synchronization pulses, and continuous analog waveforms. The raster became the discipline of the system. The camera scanned an image; the receiver reconstructed it in the same order. If timing failed, the picture failed.

As television spread around the world, countries did not all adopt the same technical norms. The United States and several other regions used NTSC. Much of Europe and many other countries adopted PAL. France, parts of Eastern Europe, and other territories used SECAM. Brazil developed PAL-M, combining PAL-style color treatment with NTSC-like 525-line, 60-field timing. There were also intermediate regional variants shaped by power-line frequency, RF channel width, regulatory decisions, and compatibility requirements.

To the public, it was all simply television. To engineers, NTSC, PAL, PAL-M, and SECAM were different technical languages.

Why Standards Became Necessary

Analog television had to carry several kinds of information through limited bandwidth: luminance, chrominance, synchronization, and audio. In many systems, the picture information used amplitude modulation with vestigial sideband transmission, while audio used frequency modulation on a separate carrier. Color had to be added without making millions of black-and-white receivers obsolete.

NTSC and PAL encoded color using a chroma subcarrier where phase and amplitude represented color information. PAL reversed phase on alternate lines to reduce hue errors. SECAM took a different path, transmitting color-difference information sequentially using frequency modulation. These were not arbitrary choices. They were engineering tradeoffs among bandwidth, receiver complexity, transmission robustness, human vision, and backward compatibility.

A basic over-the-air television chain required every part of the system to agree: camera scanning, synchronization, production switching, modulation, RF transmission, antenna reception, demodulation, and display reconstruction. Without standards, one device could generate a signal another device could not interpret correctly.

That is why standards are not bureaucracy. Standards are the reason the system works.

From Analog Waveforms to Digital Code Values

The transition to digital television did not remove the need for standards. It made standards even more important.

Analog video was continuous. Digital video is sampled. A voltage becomes a number. A color becomes a code value. A frame becomes pixels. Audio becomes samples. Metadata becomes structured information. In modern facilities, signals move through SDI, HDMI, files, compressed streams, IP networks, and SMPTE ST 2110 flows.

The digital system can be more precise than analog, but only when the values are generated and interpreted correctly. Rec.709, Rec.2020, HDR transfer functions, legal range, full range, YCbCr encoding, RGB conversion, SDI timing, HDMI output behavior, and IP packet timing all matter.

This is where the visual and the mathematical separate.

The eye sees a color bar. The system sees code values.

SMPTE Color Bars: What Looks Simple Is Actually a Reference Instrument

SMPTE color bars are one of the most recognizable test patterns in broadcast engineering. They are not decorative. They are a controlled reference for evaluating luminance, chrominance, black level, clipping, color decoding, and signal path integrity.

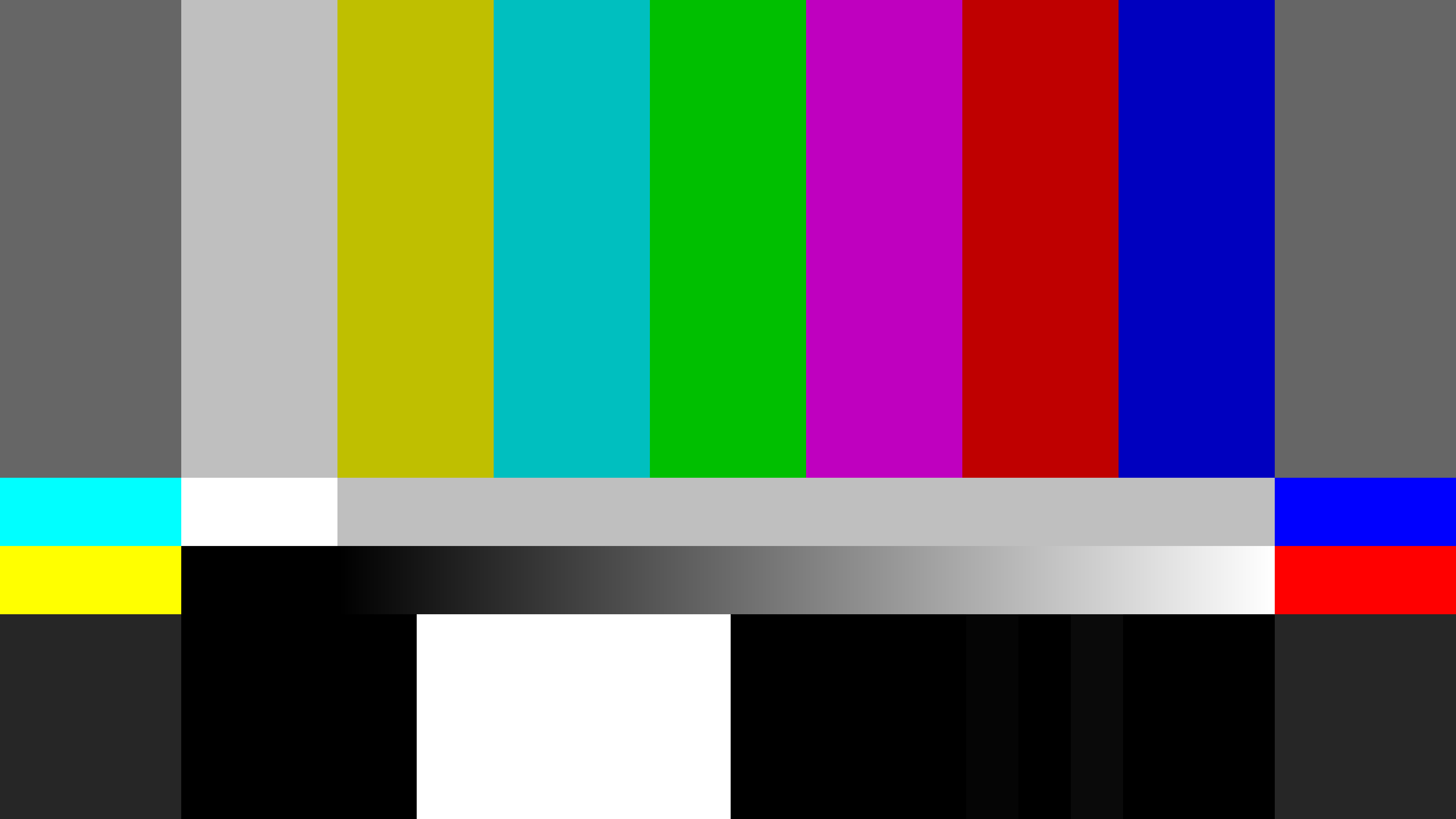

In Rec.709 legal-range 8-bit video, black is not zero. Legal black is code value 16. Legal white is code value 235. Therefore, a 75% bar is not chosen by eye; it is calculated inside the legal video range:

let black: UInt8 = 16
let level75: UInt8 = 180

The level comes from:

16 + 0.75 * (235 - 16) ≈ 180

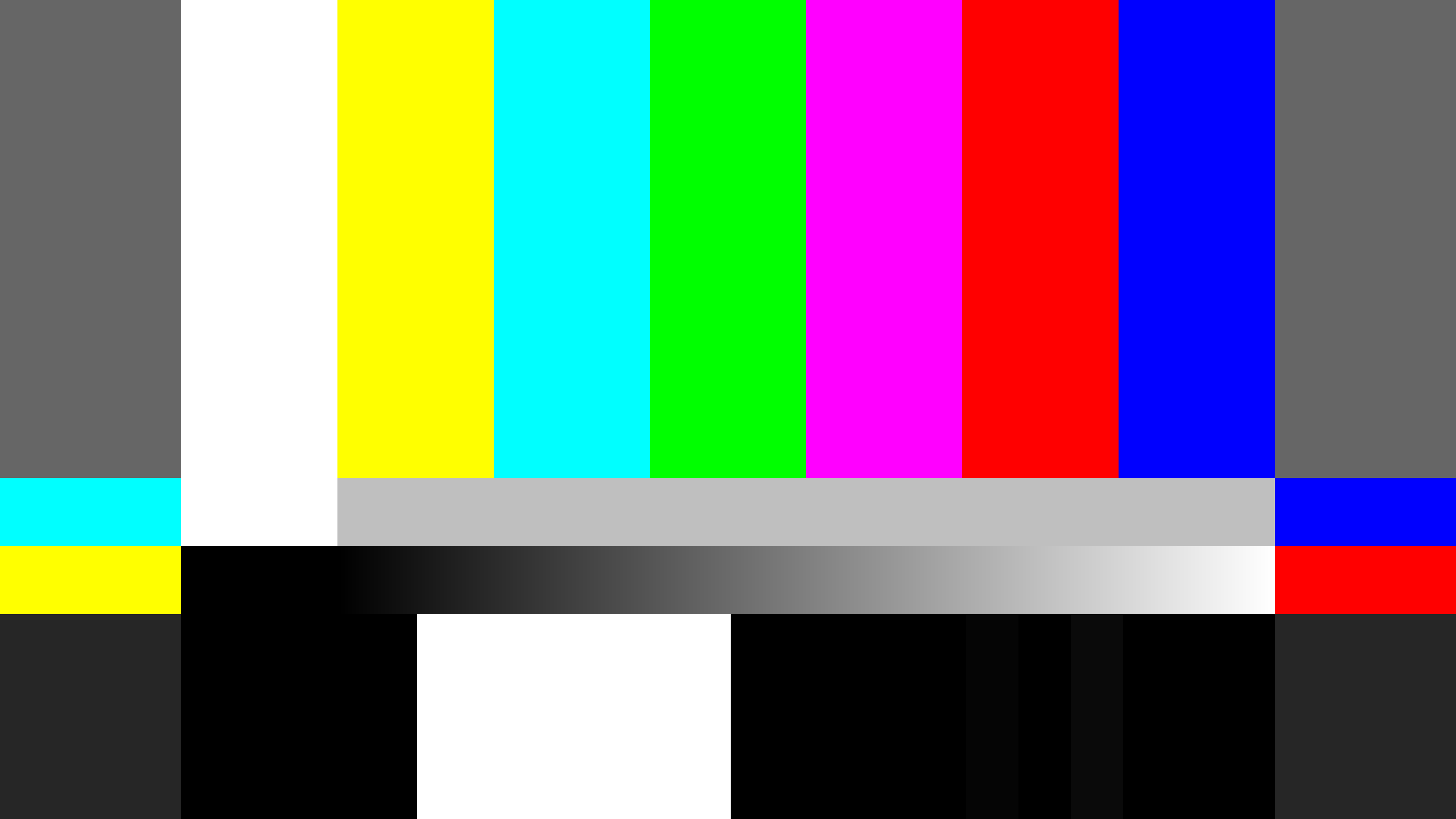

A 100% SMPTE bar pattern uses the full legal active level:

let black: UInt8 = 16
let level100: UInt8 = 235

Visually, SMPTE 75% and SMPTE 100% look related. Mathematically, they are different states of the same reference system. That difference matters when checking peak levels, saturation, clipping, display behavior, or the response of a video chain.

For example, the yellow bar in SMPTE 75% is not simply "yellow." In algorithmic form:

let yellow = UIColor.rgb(level75, level75, black)

In SMPTE 100%, it becomes:

let yellow = UIColor.rgb(level100, level100, black)

The visual difference is brightness and saturation. The engineering difference is code-value precision.

Modern Camera Paths: SMPTE Hybrid Fiber and ST 2110

Modern broadcast production still depends on the same discipline: every signal must have a defined path, a defined meaning, and a defined timing reference.

A SMPTE hybrid fiber camera cable can carry optical signals, copper power, intercom, tally, return video, and camera-control data between a camera head and its base station or CCU ecosystem. In a contemporary plant or truck, that camera signal may pass through an HDX or base station, optical routing such as a Glimmerglass matrix, a CCU, RCP control, SDI or fiber/electrical conversion, and eventually an IP gateway.

Once the workflow becomes SMPTE ST 2110, the single "video signal" is no longer treated as one monolithic stream. Video, audio, and ancillary data become separate RTP-based essences synchronized by PTP. That is a major conceptual shift from analog and SDI-era thinking.

This evolution does not weaken the role of standards. It proves their value. A modern facility may include optical routing, SDI, IP fabric, PTP grandmasters, NMOS control, UHD, HDR, embedded audio, de-embedded audio, captions, timecode, tally, intercom, and camera paint control. The only way such a system remains predictable is through rigorous technical definitions.

Mathematics: The Invisible Structure Behind the Image

The history of engineering is, in many ways, the history of mathematics becoming practical.

Pythagoras showed that geometry could be described with exact relationships. Maxwell expressed electricity, magnetism, and light through equations. Kirchhoff gave engineers laws to analyze current and voltage in circuits. Nikola Tesla explored alternating current, resonance, fields, motors, transformers, and power distribution with a mind deeply tied to mathematical structure and physical intuition.

Television belongs to that same lineage.

A raster is geometry over time. A carrier is a waveform. A color subcarrier is phase, amplitude, and frequency. A digital pixel is a numerical sample. A waveform monitor is applied mathematics. A vectorscope is trigonometry made visible. A calibrated pattern is an agreement between human vision and code values.

GEN-B follows that principle. It is not enough for a pattern to resemble a known image. A professional pattern must be generated from the correct values, with the correct range, the correct colorimetry, the correct order, and the correct intent.

That is why an iPhone application, when designed with rigor, can stand beside dedicated professional instruments in meaningful workflows. The form factor is modern, but the engineering foundation is old, deep, and mathematical.

Why GEN-B Matters

GEN-B brings professional video test patterns into a portable, software-defined environment. Its value is not only that it displays patterns. Its value is that the patterns are built from engineering logic: Rec.709 code values, legal range awareness, SMPTE/EBU pattern structures, HDR test intent, and practical field usability.

The modern engineer needs tools that are fast, accurate, and available at the point of work. A test pattern generator does not have to be physically large to be technically serious. Precision is not a function of weight. Precision is a function of standards, math, implementation, and verification.

In engineering, seeing is not enough.

We measure.

We calculate.

We compare against standards.

And when the calculation is correct, the image finally tells the truth.

References

1. ITU-R BT.709-6 — Parameter values for the HDTV standards for production and international programme exchange
2. Society of Motion Picture and Television Engineers — SMPTE ST 2110 Standards Suite
3. Society of Motion Picture and Television Engineers — Top Standards: SMPTE Color Bars and SDI
4. National Archives — The Following Program... How the FCC decided who got the nod to put color into our TV sets
5. National Archives — Standardizing Color Television Systems
6. D. H. Pritchard — U.S. Color Television Fundamentals: A Review, SMPTE Journal, 1977
7. AJA Video Systems — What is SMPTE ST 2110?
8. Belden — SMPTE Camera Cable 7825P product information

GEN-B is a professional Full HD test-signal generator and display-analysis platform developed by Precision Broadcast Engineering.
